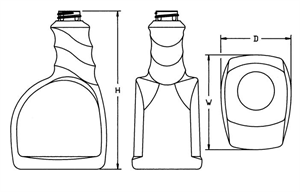

| Size | Mold | Neck | Height | Width | Depth | Diameter |
| 16 oz | 611601 | 28-400 Ramp | 7.40" | 3.608" | 2.65" | |
| Notes: Available with or without view stripe. | ||||||
| 16 oz | 611603 | 28-400 Ramp | 7.40" | 3.608" | 2.65" | |
| Notes: Available with or without view stripe. | ||||||
| 16 oz | 611601 | 28mm Guala Rat | 7.535" | 3.608" | 2.65" | |
| 16 oz | 611601 | 28mm WestRk Rat | 7.617" | 3.608" | 2.65" | |
| Notes: Use with WestRock Ratchet Trigger Sprayer | ||||||
| 500 ml | 611601 | 28-400 Ramp | 7.40" | 3.608" | 2.65" | |
| Notes: Available with or without view stripe. | ||||||
| 500 ml | 611603 | 28-400 Ramp | 7.40" | 3.608" | 2.65" | |
| Notes: Available with or without view stripe. | ||||||
| 500 ml | 611601 | 28mm WestRk Rat | 7.617" | 3.608" | 2.65" | |
| Notes: Use with WestRock Ratchet Trigger | ||||||
| 24 oz | 612401 | 28-400 Ramp | 7.40" | 4.40" | 3.22" | |
| 750 ml | 612401 | 28-400 Ramp | 7.40" | 4.40" | 3.22" | |
| 27 oz | 612702 | 28-400 Ramp | 7.375" | 4.426" | 3.517" | |
| 800 ml | 612702 | 28-400 Ramp | 7.375" | 4.426" | 3.517" | |
| 32 oz | 613202 | 28-400 Ramp | 7.40" | 4.95" | 3.63" | |
| 32 oz | 613204 | 28-400 Ramp | 7.40" | 4.95" | 3.63" | |
| 1 Liter | 613202 | 28-400 Ramp | 7.40" | 4.95" | 3.63" | |
| 1 Liter | 613204 | 28-400 Ramp | 7.40" | 4.95" | 3.63" | |
|
Applications: Automotive Appearance Household Lawn & Garden Pet Care Sprayer | ||||||
|
Patent: Design Patented |
||||||
