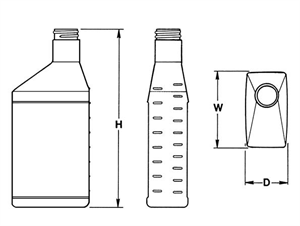

| Size | Mold | Neck | Height | Width | Depth | Diameter |
| 8 oz | 790804 | 28-400.440 H | 6.497" | 2.756" | 1.596" | |
| 8 oz | 790804 | 28mm Anti-Backoff Drop-Lok | 6.787" | 2.756" | 1.596" | |
| 250 ml | 790804 | 28-400.440H | 6.497" | 2.756" | 1.596" | |
| 250 ml | 790804 | 28mm Anti-Backoff Drop-Lok | 6.787" | 2.756" | 1.596" | |
| 16 oz | 790016 | 28-400 | 7.69" | 3.31" | 1.94" | |
| 16 oz | 791601 | 28-400 | 7.69" | 3.31" | 1.94" | |
| 16 oz | 716201 | 28-400 .430 H | 7.705" | 3.31" | 1.94" | |
| 16 oz | 790016 | 28-400 .437 H | 7.71" | 3.31" | 1.94" | |
| 16 oz | 790016 | 28-410 | 8.04" | 3.31" | 1.94" | |
| 16 oz | 790016 | 28mm Drop-Lok | 8.03" | 3.31" | 1.94" | |
| 16 oz | 790016 | 28mm Uni-Lok | 8.03" | 3.31" | 1.94" | |
| Notes: Fits Alcoa's Uni-Lok. | ||||||
| 16 oz | 790016 | 33-400 | 7.70" | 3.31" | 1.94" | |
| 16 oz | 791601 | 33-400 | 7.70" | 3.31" | 1.94" | |
| 16 oz | 790016 | 33-400 .510 H | 7.83" | 3.31" | 1.94" | |
| 500 ml | 790016 | 28-400 | 7.69" | 3.31" | 1.94" | |
| 500 ml | 791601 | 28-400 | 7.69" | 3.31" | 1.94" | |
| 500 ml | 716201 | 28-400 .430 H | 7.705" | 3.31" | 1.94" | |
| 500 ml | 790016 | 28-400 .437 H | 7.71" | 3.31" | 1.94" | |
| 500 ml | 790016 | 28-410 | 8.04" | 3.31" | 1.94" | |
| 500 ml | 790016 | 28mm Drop-Lok | 8.03" | 3.31" | 1.94" | |
| 500 ml | 790016 | 28mm Uni-Lok | 8.03" | 3.31" | 1.94" | |
| Notes: Fits Alcoa's Uni-Lok. | ||||||
| 500 ml | 791601 | 33-400 | 7.70" | 3.31" | 1.94" | |
| 500 ml | 790016 | 33-400 | 7.70" | 3.31" | 1.94" | |
| 500 ml | 790016 | 33-400 .510 H | 7.83" | 3.31" | 1.94" | |
| 20 oz | 716201A | 28-400 .430 H | 8.97" | 3.31" | 1.94" | |
| 20 oz | 792001 | 28-400SP | 8.997" | 3.312" | 1.946" | |
| 32 oz | 793204 | 28-400 .437 H | 9.501" | 4.252" | 2.525" | |
| 1 Liter | 793204 | 28-400 .437 H | 9.501" | 4.252" | 2.525" | |
|
Applications: Automotive Additive Lawn & Garden Sprayer | ||||||
|
Notes: Available with and without view stripe. Engraved with ml and oz graduations. |
||||||
